ELB 1200 Power Pack (No Battery)
ELB 1200 Power Pack (No Battery)

Elinchrom ELB 1200 Power Pack (No Battery)

MFR Part #: EL10288.1
Samy's Part #: S-050872
  • ELB 1200 Power Pack (No Battery) Image 0
Availability: Special Order




Items Included

Rate & Review

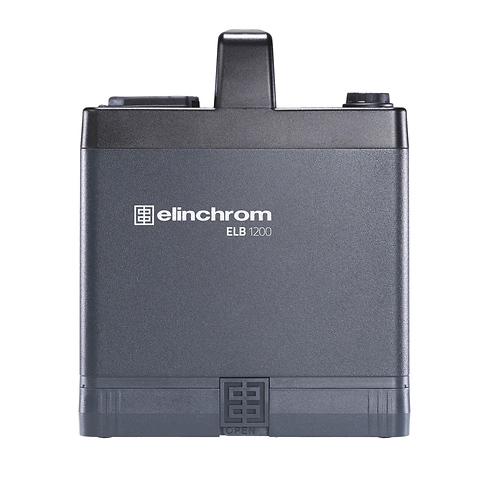

With a weight of only 3.2 kg (without battery) and 1200Ws, the Elinchrom ELB 1200 Power Pack (No Battery) is a remarkably powerful, robust, weather resistant and portable battery pack designed to take photographers to new heights! The ELB 1200 unit has been completely re-thought to address the needs of the most demanding photographers. Elinchrom evolved its traditional battery pack shape to offer photographers a more modern case. The large OLED user interface has a very easy structure to navigate through. The unit is light and compact yet able to withstand extremely harsh weather conditions and heavy shocks. The pack's good looks and convenience features are backed by high performance. Speed is the operative word. The pack can deliver its 1200Ws symmetrically or asymmetrically in 1/10 or 1 stop increments with 8.5 stops of power variability from 7 to 1200Ws. There are three flash modes: Eco, Default, and Fast, and the pack recycle to full power in 1.7 seconds in Fast Mode. Flash duration is an action-stopping 1/8850 second at 33% power with the optional Action Flash Head. The standard Air battery will give you 215 full-power flashes and 80 minutes of run time for the LED modeling light. The more powerful HD battery provides 400 full-power flashes and 120 minutes of run time. The Hi-Sync head is optimized for HS shooting up to 1/8000 second, while the Pro head will give you 1/5050 second flash duration at 140Ws. True to its name, the Action head will give you the fastest flash duration of 1/8850, when set to 172Ws. The ELB 1200 has settings on its OLED display for On, Free (selectable level), Timer (1-60 sec), Proportional (to power level), and Dimming (from 5 to 100%). Triggering options include a 3.5mm sync port, but the EL 1200 has a built-in EL Skyport receiver that will allow you to wirelessly fire the unit at distances up to 656' with the addition of an EL Skyport transmitter.

  • A and B outlets
  • 2:1 (66%:33%) asymmetry
  • 1:1 (50%:50%) option
  • 1.7s Recycling time in FAST mode
  • 3.0s Recycling time in DEFAULT mode
  • Large OLED control display
  • Head recognition
  • LED illuminated outlets, show which head is active
  • Each head can be activated or deactivated separately
  • Flash duration display
  • Strobo, delay and sequence features
  • Precise colour consistency
  • Reliable flash duration consistency
  • USB input for firmware updates
Reproductive harm.
For more information, go to

Customers Also Browsed

Monolight Head Information
Maximum Wattseconds 1200 Ws
Sync Voltage 5V
Recycle Time Full-Power Recycling: Fast: 1.7 sec Default: 3.0 sec Eco: 6.0 sec
Modeling Light LED in flash head On, Free, Proportional, Timer 1-60 sec, VFC, Dimming 5-100%
Trigger 3.5 mm EL-Amphenol sync cord Built-In EL Skyport Radio Receiver: 20 channels, 4 groups
Weight 7.0 lb (3.2 kg) without battery
Dimensions 7 x 5 x 11 ft. (18 x 13 x 28 cm) with optional battery
Flash Duration 1/8850 sec at 33%, power setting 4.7 (Action Head)
Guide Number F-stop at 3.28' (1.0 m), 100 ISO, 48° reflector Pro 128, Action 90.6, Hi-Sync 128
Flash Variability 8.5 stops 7 - 1200 Ws in 1 stop or 1/10 stop increments
Color Temperature 5500K with optional flash head
Operating Voltage Optional Air: Lithium-ion 36V, 2.5 Ah, 90 Wh Optional HD
Distribution Asymmetrical 2:1 or Symmetrical
  • Limited 2-Year Warranty
