Zacuto | Z-Finder EVF Pro (3.2 inch)

MFR Part #: ZFINDEVFP

Samy's Part #: S-011476

Availability: In Stock

QTY

$59900

Description

Rebates

Items Included

Rate & Review

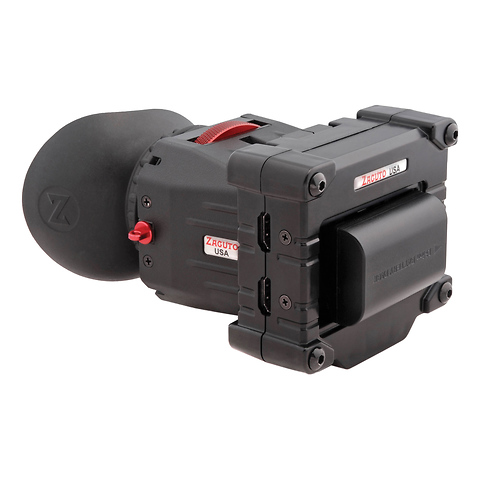

The Zacuto Z-Finder EVF Pro (3.2”) is an electronic view finder with a TFT LCD display and offers a resolution of 800 x 480 and 16.7M color. Consisting of an EVF Flip model and an optical viewfinder, the EVF Pro allows you to operate a DSLR or any other camera with an HDMI port, by offering an image as seen by the camera itself. Designed to be attached ‘in-line’ to your rod system, it aids in stable and efficient shooting, and ensures correct form factor for the video. The EVF can be used with all Z-Finder models and is compatible with most cameras including Panasonic AF-100 and Sony F3.

Featuring 180° flip-up mechanism, the optical viewfinder can turn over to one side, thereby allowing you to view the 3.2” monitor from a distance. The optical viewfinder with an eye-cup offers 2.5x zoom power and has an anti-fog shield for reducing fog. The built-in diopter ring comes as a help to users who use reading glasses (or far-sighted people) to adjust focusing, thereby offering a clear view. The Z-Finder Extender Frames allow you to further adjust the focal length of the Z-Finder by semi-permanently stacking the frames via a snap fit on to the skirt of the Z-Finder until the LCD screen is in focus for you. Users with high-powered reading glasses would find the extender frames useful.

Using the Zebra stripes feature, you can adjust the IRE level of displayed image. The Focus Assist sharpens the edges of the objects in focus. With the ‘Blue only’ option, you can view the blue channel and calibrate the monitor using SMPTE color bars. The anamorphic setting ’un-squeezes' the anamorphic image produced by the anamorphic lens for viewing in the EVF. It includes aspect ratio frame lines such as 1.33:1 (4×3), 1.66:1 (15×9), 1.78:1 (16×9), 1.85:1 (35mm theatrical), 2.35:1 (Cinemascope). You can refer to the ‘action safe markers’ to avoid cropping of critical parts of image. A second HDMI port means you can also loop the image to another monitor.

The battery level indicator with selectable on/off display icon appears automatically when the battery power reaches 10% remaining. You can update your EVF firmware via a USB port. 3 assignable function buttons allow you to program up to 3 functions. Using Live Menu Preview, you can view changes during menu changes. The kit comes with a standard hot-shoe EVF mount, HDMI cable, rechargeable battery, battery charger, lens cloth and protection case.

Electronic viewfinder consists of a TFT LCD with battery, an EVF Flip model, and an optical viewfinder
TFT LCD offers a resolution of 800 x 480 and 16.7M colors
Allows you to operate the DSLR or any camera with an HDMI port, by offering an image as seen by the camera itself
Designed to be attached 'in-line' to your rod system, and offers stable and efficient shooting
Ensures correct form factor for the video shooting
Can be used with all Z-Finder models and is compatible with most cameras including the Panasonic AF-100 and the Sony F3
Optical viewfinder with 2.5x zoom can flip up 180°, thereby allowing you to directly refer the LCD from a distance
Anti-fog shield and diopter ring
Z-Finder Extender Frames - Useful for farsighted people or those who wear reading glasses; allow you to further adjust the focal length of the Z-Finder by semi-permanently stacking the frames via a snap fit on to the skirt of the Z-Finder until the LCD screen is in focus for you
Zebra stripes feature - you can adjust the IRE level of the captured image
Focus Assist - sharpens the edges of the objects that needs to be highlighted
Blue only option - allows you to view the blue channel only and is used for SMPTE color bars for monitor calibration
Anamorphic setting - un-squeezes the anamorphic image produced by the anamorphic lens for viewing in the EVF
Includes aspect ratio frame lines such as 1.33:1 (4×3), 1.66:1 (15×9), 1.78:1 (16×9), 1.85:1 (35mm theatrical), 2.35:1 (Cinemascope)
Action safe markers allow you to see that the critical parts of your image will not be cropped out in broadcast
Battery level indicator with selectable on/off display icon appears automatically when the battery power reaches 10% remaining
EVF firmware updatable via USB port
3 assignable function buttons - programmable for up to 3 functions
Live Menu Preview - view changes during menu changes
Comes with a standard hot-shoe EVF mount, HDMI cable, rechargeable battery, battery charger, lens cloth and protection case

CAUTION
Direct sunlight can burn spots onto the EVF screen. A black disk with a 16x9 mask cut out that will reduce the amount of light entering your EVF is supplied that helps to avoid this. It does not eliminate the sun 100% and there is still the potential to burn your screen, but it will help a great deal. Precaution must be taken, and the Z-Finder lens cap must be used at all times when the EVF is not in use. For current owners, please contact the manufacturer for a free protective disk

Zacuto - Z-Finder Jr.

$149.00
Zacuto - C300/500 Z-Finder 1.8x

$460.75

Special Order
Call to Order: 1-800-321-4726
Zacuto - C300/500 Z-Finder 1.8x with Mounting Kit

$660.25

Special Order
Call to Order: 1-800-321-4726
Zacuto - Gratical HD Micro OLED EVF

$2,450.00
Zacuto - Z-Finder Pro 2.5x

$375.25

Standard Hotshoe EVF Mount
HDMI Cable
Rechargeable Battery
Battery Charger
Lens Cloth
Protection Case
