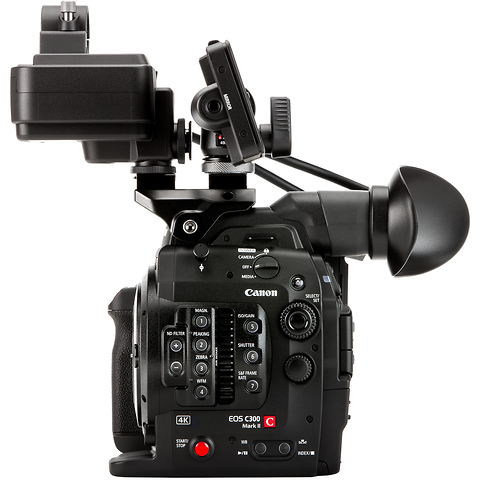

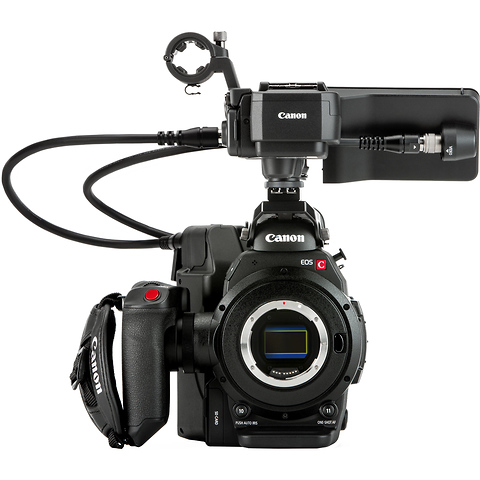

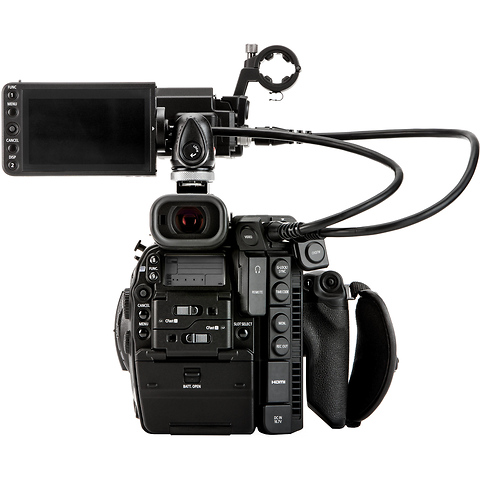

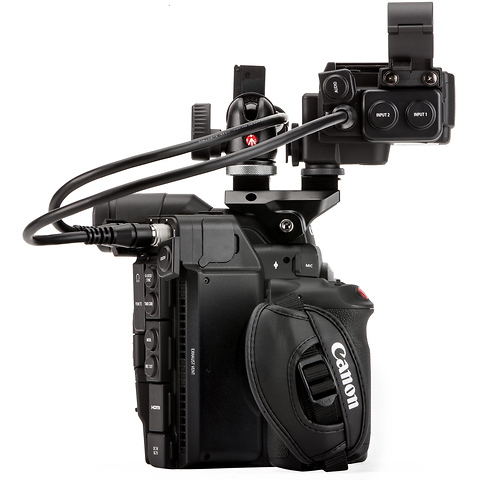

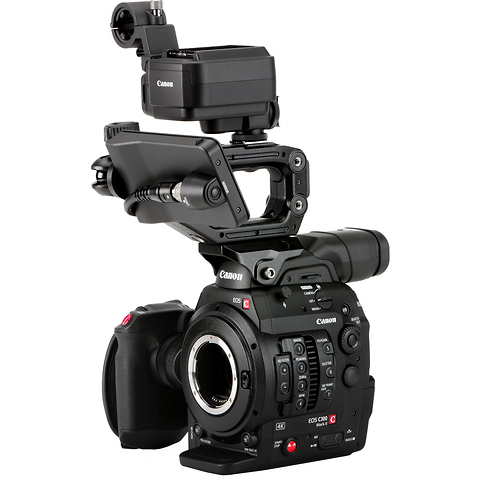

Canon Cinema EOS C300 Mark II Camcorder Body with Touch Focus Kit (EF Mount)

The EOS C300 Mark II Digital Cinema Camera is an evolutionary 2nd generation Cinema EOS 4K camera system with a wide range of new and improved features including 4K/2K/Full HD internal and external recording (including 4K RAW output) and a new 10-bit Canon Log 2 Gamma. This powerful new camera also features an expanded dynamic range of 15 stops, improved Dual Pixel CMOS Autofocus, innovative focus assist engineering and CFast recording technology. Redesigned with the help of user input, the EOS C300 Mark II Digital Cinema Camera helps to deliver more creative flexibility for professional studio motion picture production applications, as well as independent productions, TV dramas, commercials, news features, sports and more.

The EOS C300 Mark II Digital Cinema Camera integrates a re-designed imaging system of advanced components. These include a newly developed 8.85 Megapixel Canon Super 35mm 16:9 CMOS image sensor that supports up to 4K (DCI) recording with a maximum resolution of 4096 x 2160 pixels and a high-speed readout for reduced rolling-shutter distortion. Working in concert with its dual Canon DIGIC DV5 image processors, data from the 4K sensor delivers Over-Sampling HD Processing for reduced-moiré 2K(DCI)/Full 1080-60p HD recording and Dual-Pixel CMOS Auto Focus with an expanded focusing area and Face Detection (in combination with Canon EF lenses). The dual DIGIC DV5 image processors also help to reduce visual noise and enable high-sensitivity shooting at a maximum speed of ISO 102,400 (+54dB) for sharp, clear image capture using only ambient lighting. In addition to its sensor and processors, the EOS C300 Mark II camera also incorporates a trio of XF-AVC H.264 codecs that enable in-camera 4K (DCI) recording to dual CFast card slots and 2K/Full HD recording to an SD card slot. For external recording and monitoring, twin 3G-SDI outputs capable of 4K RAW output are included on the rear of the camera body Users can choose among multiple recording modes, resolutions and frame rates to meet their production needs.

Creative flexibility is also greatly enabled by the EOS C300 Mark II Digital Cinema Camera’s compatibility with the full range of more than 100 Canon EF and EF-S photographic lenses (including specialty tilt-shift and fisheye models) and Canon CN-E Cinema prime and zoom lenses (including the "ENG-style" Canon CINE-SERVO zooms). New Dual-Pixel CMOS AF capabilities of the EOS C300 Mark II are enabled by the AF motors in Canon EF lenses. The improved EF lens communication capabilities of the EOS C300 Mark II camera allow for the display of CN-E Cinema lens T-values, lens metadata acquisition, and chromatic aberration correction on the camera’s LCD Monitor/EVF/Output display.

Operability improvements of the Canon EOS C300 Mark II Digital Cinema Camera that further facilitate operation and creative freedom include full manual control, an Ultra-High Resolution 1.77 Megapixel color OLED EVF with adjustable 60° tilting angle, a built in internal mono reference microphone, a removable hand grip, an improved camera handle extension with additional attachment points, and a removable LCD Monitor and control panel with XLR inputs. The modular design of the EOS C300 Mark II camera also allows for many kinds of industry-standard accessories to be added or removed as needed.

FEATURES:

Canon Super 35mm CMOS Sensor: Modeled on the Super 35mm 3-perf motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080)

Canon Log Gamma: Canon Log Gamma 2/ACES/REC.2020 support

Dual Canon DIGIC DV 5 Image Processor: The camera features Dual DIGIC DV 5 processors to handle the internal data processing.

XF AVC Codec: To create digital files robust enough for major postproduction, the EOS C300 delivers the highest image quality with its XF AVC Codec - an H.264 format wrapped in the widely-supported MXF wrapper

Designed with Filmmakers in Mind: A logical layout of buttons and dials make operation simple. A lock switch turns off all controls except the recording button and function buttons. Small ridges between the buttons help prevent activating functions by mistake. A backlit display panel is great for low-light viewing. A tally lamp is clearly visible from the side or behind the camera.

Compact & Modular Design: The EOS C300 body is compact and easily handheld at just over 3 lb. There is a bright 1.55 Megapixel electronic viewfinder, and the camera comes bundled with a removable combination 4", 1.23 Megapixel monitor and control panel. The camera also has a removable handgrip with a control dial and function buttons for handheld shooting in DSLR style, or remove it and use the supplied thumb rest for completely stripped-down shooting. The EOS C300 has a manually operated built-in neutral density (ND) glass filter offering 1/4, 1/16, and 1/64th steps of filtering. Handheld or using a tripod, on location or in the studio, even on 3-D rigs, the EOS C300 fits shooting situations that are challenging for larger cameras.

Rugged, Durable & Quiet: The EOS C300's dust-proof and splash-proof design includes sealing gaskets around the edges of all access covers, dials fitted with o-rings on the axis of rotation, and button key-tops sealed with rubber. The EOS C300 also features a built-in silent cooling system with a heat-dissipating duct in the center of the body, a graphite sheet that conducts sensor heat towards the heat sink, three ventilation holes, and a cooling fan that pulls hot air out through an exhaust opening. All air is directed through a discrete pathway that keeps dust particles away from sensitive components. Your camera runs cool, quiet, and clean.

Ultra-High-Resolution EVF: The EOS C300 features a 0.46", 1.17 Megapixel color EVF and 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus, and color. The angle of the viewfinder is adjustable for additional user comfort. EVF adjustments include brightness, contrast, color, and backlight (Normal or Bright).

Rich Audio Controls: When mounted to the EOS C300 Mark II camera, the included control unit provides two XLR audio inputs with +48V phantom power. A 3.5mm microphone terminal is also built in to the camera. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high fidelity sound. Both XLR inputs, as well as the mic terminal have the option for automatic, as well as full manual gain control (-Infinity to +18dB). Additionally, a 3.5mm headphone terminal with 16 volume settings offers accurate audio monitoring.

CF Memory Card Recording: The camera records to CFast 1 cards through two slots.

High-Speed, Slow-Motion, Time-Lapse & Stop-Motion: Beyond the advantages of file-based recording, the camera offers a number of creative possibilities in post-production including Slow & Fast motion.

Connectivity: To connect to external monitors, switchers, VTRs, and NLE systems with SDI inputs, the EOS C300 features industry-standard HD-SDI output, genlock, and timecode terminals, plus audio terminals with linear PCM recording. Timecode and genlock enable synchronized multiple camera capture, perfect for multiple-camera shots, 3D acquisition, and more. The HD-SDI sync terminal can be switched to output to HD Sync, HD Y, Black Burst, and Composite.

Full Manual Control & Focusing Aids: The camera has a Waveform Monitor (WFM) function that shows the overall brightness of a scene, with RGB Parade Display to view red, green, and blue brightness or Spot Display to isolate the luminance distribution of a chosen area. The Vectorscope (VS) display shows real-time hue and saturation levels. For sharp focus, the EOS C300 camera has two peaking modes and a magnified focus assist function. An Edge Monitor Focus Assist provides both a waveform representing the overall degree of focus and a red waveform that represents focus in three specific areas displayed on the camera's 4" LCD monitor. To maintain proper highlight exposure, it offers a zebra bar feature as well.
