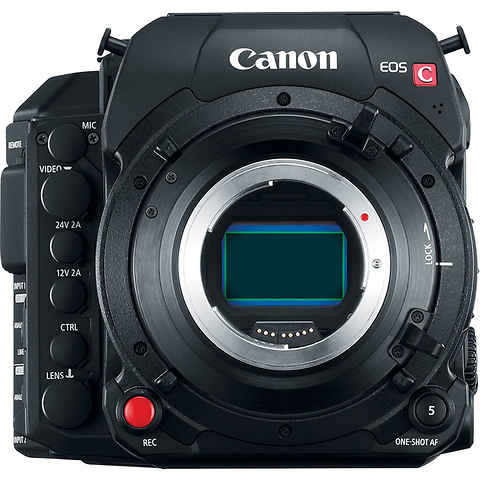

The Canon EOS C700 Full-Frame Cinema Camera (Cinema Locking EF-Mount) features a full frame CMOS sensor designed to meet an extensive range of production needs. The camera’s full frame sensor provides higher resolution and produce footage with shallower depth of field than Canon cameras with Super 35 sized sensors, giving filmmakers a variety of creative options.

The EOS C700 FF is capable of ProRes and XF-AVC internal recording up to 4K to CFast cards. With the optional Codex CDX-36150 recorder, the EOS C700 FF is capable of recording 5.9K RAW up to 60 frames per second. When oversampling 5.9K in 4K/UHD recording, moiré is suppressed and noise graininess improved, resulting in higher quality video compared to native 4K image capture. The EOS C700 FF also has a wide array of 2K/UHD/HD recording options, including recording up to 168 fps in 2K RAW in Super 16mm (crop) mode.

The camera includes Canon’s Dual Pixel CMOS AF (DAF) technology (EF mount only), and has an impressive dynamic range of 15 stops. Other key features of the EOS C700 FF camera system include Canon Log 2 and 3, Slow/Fast Motion Recording, IP Streaming and support for ACES, SMPTE ITU-R BT.2100 (HDR) and User LUTs.

The rugged magnesium body was built with rounded edges and semi-circular sides behind the lens mount that hint at the Canon Cinema design legacy. The EOS C700 FF can be equally comfortable handheld, shoulder-mounted, on a tripod head, steadicam, gimbal rig, jib, crane or car mount. An optional professional grade OLED HD electronic viewfinder (EVF-V70) offers additional versatility. The camera is also compatible with a variety of lens configurations including anamorphic and B4 (with the optional MO-4E adapter).

FEATURES:

5.9K Full Frame CMOS Sensor - The EOS C700 FF Digital Cinema Camera offers a new full frame 5.9K CMOS sensor (38.1 x 20.1mm) with a 17:9 aspect ratio. In addition to full frame lenses, the camera can also be used with conventional Super 35mm lenses, and supports both anamorphic and spherical lenses. The sensor is capable of capturing footage in a wide variety of aspect ratios.

Modular Design for Versatile Shooting Configurations - The EOS C700 FF Digital Cinema Camera features a modular design which allows for a wide range of shooting applications, supporting a variety of workflows. The EOS C700 FF is a full size cinema camera allowing for both traditional studio style and handheld configurations. The camera body includes built in cheese plates with numerous 3/8-16 and 1/4-20 threaded holes on the top and bottom to easily attach accessories. The top handle attaches in a variety of positions in order to achieve optimum balance. The EOS C700 FF has an optional 0.7-inch OLED Electronic Viewfinder (EVF-V70). Canon's first professional grade viewfinder features Full HD 1920x1080 viewing, view assist and false color. The EVF also has the ability to display an HDR simulated picture with a "stretched" dynamic range for increased shadow detail and highlight retention.

Multiple Recording Formats - The EOS C700 FF features a wide range of options to fit your particular workflow. With an optional Codex Recorder CDX-36150 attached, the EOS C700 FF can record 5.9K RGB Bayer RAW up to 60 fps, 4K RAW (Super 35mm crop) up to 72fps and 2K RAW (Super 16mm crop) up to 168 fps. ProRes and XF-AVC recording to CFast™ cards is also available, as is XF-AVC (Proxy) recording.

5.9K Oversampling for 4K - The EOS C700 FF Digital Cinema Camera uses a high-quality debayering algorithm when over sampling 5.9K in 4K/UHD recording to suppress moiré and improve noise graininess, resulting in high quality video.

Canon Log 2 and 3 - The EOS C700 FF Digital Cinema Camera supports Canon Log 2 and Canon Log 3 Gamma. Canon Log is designed to reproduce, in post-production, the entire tonal range that the CMOS image sensor is capable of. Log workflows provide the user with higher dynamic range, more highlight and shadow retention, and more flexibility in grading. Canon Log 2 provides the largest dynamic range and image detail. While Canon Log 2 provides the most post-production flexibility and the full 15 stops of dynamic range of the sensor, it requires more post time. For users looking for most of the benefits of log workflow, but with shorter turnaround times, Canon Log 3 provides an alternative with only a slightly reduced dynamic range of 14 stops.

SMPTE ITU-R BT.2100 Support for PQ/HLG Standard  - The EOS C700 FF Digital Cinema Camera features the option to output HDR formats conforming to ITU-R BT.2100 over the monitor input, to assist in HDR production. ITU-R BT.2100 allows compatible monitors to simulate the HDR look of the final piece allowing for easier lighting and other technical decisions on set during the acquisition process. The optional Canon Electronic Viewfinder (EVF-V70) also allows for an ITU-R BT.2100 simulation mode to allow the camera operator to see HDR visuals close to what is supplied on the monitor signal. This can further facilitate creative decisions on set where HDR reference equipment and output devices might not be available.

User LUT Support - The EOS C700 FF Digital Cinema Camera supports User LUTs. Users can customize their own LUTs and load them on the camera for viewing and recording.

ACES Support - The EOS C700 FF Digital Cinema Camera supports ACES 1.0 of the Academy Color Encoding System. Using Canon supplied IDTs, images captured on the EOS C700 FF can be imported directly into the ACES compatible systems. Additionally, video output from the camera can be monitored by selecting the ACES Proxy. Aces Proxy allows the camera to send a monitor output that simulates ACES space to a compatible monitor or device. Modifications made using the proxy output can be saved and later brought into the editing or grading suite to help insure changes and color choices made on set are accurately reproduced in post. Canon 17, 24 and 30-inch Reference Displays support ACES image display. The EOS C700 FF has four 3G-SDI outputs at the rear of the camera. So, while the Codex CDX-36150 records 5.9K RAW, the EOS C700 FF can simultaneously send the 5.9K image to a Canon Reference Display. The display debayers the RAW image and converts it to an ACES color space and apply an appropriate LUT. In addition to ACES, Canon's DP-2420 and DP-V2411 Reference Displays support HDR, Canon Log3 and Hybrid Log Gamma.

Dual Pixel CMOS AF - The EOS C700 FF Digital Cinema Camera features next generation Dual Pixel CMOS AF (DAF) Technology. Each pixel in the camera's CMOS sensor is configured with two photodiodes. Two independent image signals can then be detected at each photosite. By implementing phase-difference AF, smooth focusing is accomplished using Canon EF lenses with much higher speed and accuracy than was possible with previous technologies. The EOS C700 FF has rapid one-touch AF (with a push-button) and continuous AF within approximately 80% of the overall image area. Face detection AF is another autofocus mode that can track a person's face in the frame and maintain focus on them. To further fine tune AF performance, the EOS C700 FF offers the ability to set the AF tracking speed and response. DAF also makes possible the Dual Pixel Focus Guide. Dual Pixel Focus Guide presents the user with a rectangle in the center of the EVF or monitor. The rectangle turns green when the subject is in focus. If the subject is out of focus the box will turn gray and the arrows will indicate which way to adjust the lens to regain focus.

Triple DIGIC DV 5 Image Processors - "DiG!C" is Canon's acronym for Digital Imaging Integrated Circuit. The EOS C700 FF Digital Cinema Camera uses three DiG!C DV 5 image processors to power the advanced features of the camera. DiG!C works in conjunction with other subsystems of the camera such as the lens and sensor, to support the various features and the image processing engine.
