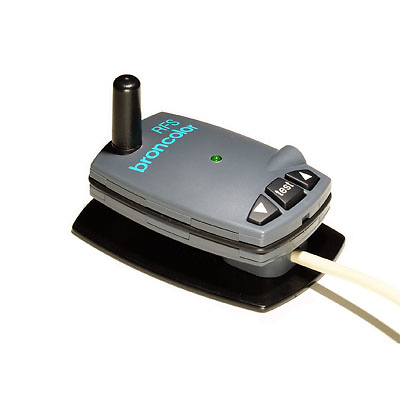

Radio transceiver with 10 digitally coded channels for wireless remote control and flash triggering of the broncolor flash units containing an integrated RFS interface, from a PC or Macintosh computer. It has a dialogue function, that means, manual settings on the unit are automatically adjusted in the computer. The transceiver is contained in a plastic housing and has an USB connection cable as well as a sync cable. A base plate is mounted underneath the housing. The software is delivered on a data carrier. With digital camera systems which have a sync connection at the PC or Macinstosh computer, the flash synchronization can be effected directly by means of the sync connector at the transceiver RFS. That means that there is no need for a separate RFS camera transmitter.
The operational distance for power packs outdoors is up to 50 m; in closed rooms up to 30 m, for compact units up to 30 m / 20 m. Each communication between the transceiver and the flash unit is indicated by the green LED. The transmission time is less then 1/1000 s. The transceiver is provided with a test button for direct flash triggering and two buttons for the regulation of the output of all radio-controlled flash units in 1/1 or 1/10 f-stop increments. The computer supplies the unit with power. Therefore there is no need for additional energy source.
